PVC Suction Hose

CONSTRUCTON & APPLICATIONS :RealOn PVC flexible Suction & Delivery Hoses are designed incorporating a rigid PVC spiral as an integral part of the soft PVC wall. The anti-shock rigid spiral imparts superior crush resistance to the hose. Specially formulated PVC compounds develops a top grade medium duty Suction & Delivery hose for meeting the challenging service conditions in Suction & Delivery of water for irrigation purpose agriculture with electric mono block and oil engine. Also for Suction & Delivery of saline water, light acids, alkalies and other chemicals except solvents for conveying of granules or fine particles of raw materials in processing industries in general this flexible hose can work with superior efficiency and offers more service life compared to rubber suction and delivery hoses.

ADVANTAGES :

  • Light weight: Often only % that of Rubber Hose has which makes it easy to carry and install.
  • Flexibility : The flexibility of hose is retained for many years, It can be bent as desired. No kinking or bulging even in the most severe working conditions.
  • Resistance : It shows strong resistance in high pressure and most of the chemicals, light acids, alkalies excepting solvents. Ideal for high pressure suction & delivery of water.
  • Weather proof : Easily Installed even to non-standard couplings.
  • Smooth Bore : Allows fast flow.

Specifications

Nominal Size Diameter Bending Redius mm Pressure ( at 30° c ) Standard Lengths (mtrs.)
Inches. mm ID mm OD mm Working Pressure (kg/CM2) Bursting kg/CM2
3/4 20 19.0* 23.6** 45 7.0 24.0 30/50
1 25 25.4* 30.0** 55 7.0 20.0 30/50
11/4 30 31.8* 36.8** 75 6.5 20.0 30/50
11/2 40 38.0* 43.3** 95 5.0 16.0 30/50
2 50 50.8* 57.8*** 122 4.0 16.0 30/45/50
21/2 65 63.5* 72.0*** 160 4.0 16.0 30/45/50
3 75 76.2* 85.0*** 272 3.5 15.0 30/36
4 100 101.2* 112.2**** 290 3.5 11.0 15/18/30
Recommended Maximum working temperature : 60/70°C
Variation in ID/OD : {* = ± 0.5} {** = ± 1.0} {*** = ±1.5} {**** = + 2.0}

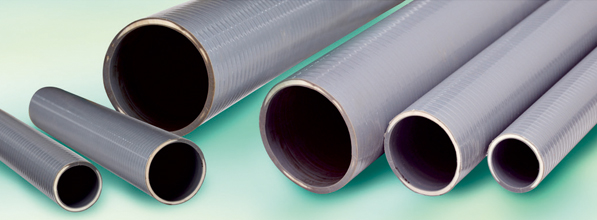

CONSTRUCTON & APPLICATIONS : RealOn PVC flexible Heavy-Duty Suction & Delivery Hoses are designed incorporating a rigid PVC spiral as on integral part of the soft PVC wall. The anti-shock rigid spiral imparts superior crush resistance to the hose. Specially formulated PVC compounds develops a top grade Heavy-Duty Suction & Delivery Hose for meeting the challenging service conditions. It is used in coal and Mineral mines, Stone & Lime quarries, Shipping, Sewage disposal, Aqua culture, Paper mills, Cement conveying, Chemical industries, Petrochemicals & Oil exploration, Fire fighting equipment, Constructional engineering, general industrial service etc.

ADVANTAGES :

  • Resistance : It shows strong resistance to high pressure and external impacts and can easily withstand absolute vacuum too.
  • Flexibility : No question of kinking or crushing even while in severe conditions and the hose is totally abrasion resistant.
  • Light Weight: Our Heavy-Duty hoses are more efficient & lighter in weight than conventional multilayer and wire reinforced ply type rubber hoses which makes the handling much easier.
  • Weather Proof : Resistant to sun, ozone and weather.
  • Smooth Bore : Smooth inside surface assures a high flow rate.

Specifications

Nominal Size Diameter Bending Redius mm Pressure ( at 30° c ) Standard Lengths (mtrs.)
Inches. mm ID mm OD mm Working Pressure (kg/CM2) Bursting kg/CM2
1 25 25.4* 31.5* 48 8.0 25.0 30
11/4 30 31.8* 38.8* 68 7.0 21.0 30
11/2 40 38.0* 46.3*** 70 5.5 18.0 30
2 50 50.8* 60.8*** 100 4.5 18.0 30
21/2 65 63.5* 74.5*** 120 4.5 18.0 30
3 75 76.2** 87.2*** 155 4.5 18.0 30
4 100 101.2*** 114.2**** 213 4.0 14.0 30
5 125 127.0*** 141.0**** 230 3.0 10.0 15/18
6 150 152.4*** 169.4**** 375 2.5 9.0 15/18
8 200 203.2*** 2244**" 600 2.5 8.0 4.5/6
10 250 254.2**** 284.0**** 1000 2.5 8.0 4.5/6
12 300 300.0**** 112.2**** 1000 2.5 8.0 4.5/6
Recommended maximum working temperature : 60/70°C
Variation in ID/OD : {* = + 0.5} {** = + 1.0} {*** = + 1.5} {**** = ± 2.0}

CONSTRUCTON & APPLICATIONS : RealOn PVC OIL Hose is secured by proper placement of hard spiral of rigid PVC in the soft wall which imparts strength as well as required flexibility to the entire hose length. It is recommended for conveying Diesel fuels, kerosene, liquid petroleum products, lubricating oil, mineral, oils, light oils, transformer etc.

Advantages:

  • Flexibility : Specially designed to have greater flexibility than rubber, hose can be bend as desired in practical uses. It has unique properties of flexibility which is maintained throughout its long duration.
  • Resistant to oil and other chemicals : Our hose is made from special Oil resistant PVC compound that's why it is preferred by quality conscious customers.
  • Ageing : Unlike rubber hoses it will not be cracked nor aged and hence, our oil hoses are durable for a very long period and proves economical.
  • Resistance to absolute vacuum : This proves the exact suitability for suction & delivery applications.
  • Easy to handle : Our oil hose is unbelievably lighter in weight then compared to the commercial Rubber products which make the handling much easier.
  • Quite tough : Tough to resist distortion under impact & crush loads during service.
  • High flow rate : Smooth inside surface results in quick conveyance of fluids. This means minimum friction loss saves higher energy and gives high flow rate.

Specifications

Nominal Size Diameter Bending Redius mm Pressure ( at 30° c ) Standard Lengths (mtrs.)
Inches. mm ID mm OD mm Working Pressure (kg/CM2) Bursting kg/CM2
1 25 25.4* 31.5* 48 8.0 22.0 30
11/4 30 31.8* 39.0* 68 7.0 21.0 30
11/2 40 38.1* 46.4** 70 5.5 18.0 30
2 50 50.8* 60.8*** 100 4.5 18.0 30
21/2 65 63.5* 74.5*** 120 4.5 18.0 30
3 75 76.2* 87.2*** 155 4.5 18.0 30
4 100 101.2*** 114.2**** 213 4.5 14.0 30
Recommended maximum working temperature : 60/70°C
Variation in ID/OD : {* = + 0.5} {** = + 1.0} {*** = + 1.5} {**** = ± 2.0}

STRUCTURE Our Duct hose has a specially compounded rigid PVC reinforcement which is helically wound and inseparably fused to the soft inner walls. By its unique construction, ducting results in a thin, very smooth wall, being almost completely protected from any possible crushing.

Features:

  • Light weight & flexible : The perfect reinforcement of rigid PVC with soft PVC gives it both, strength and flexibility. It is tough, light so easy to carry and handle thus increases working efficiency.
  • Resistance : Has strong resistance to the most of the chemicals, Acids and alkalies and also abrasion resistant with the aid of rigid outer reinforcement which can effectively handle dirt, fiber chip etc.
  • Smooth flow : Smooth inside surface helps in reducing the frictional resistance resulting in smooth & quick conveyance of material, thereby increasing the flow volume saving electric energy of equipment.
  • Economical to install: It saves installation time and money. It is easily fitted by securing with a band of wire. Any suitable end fittings can be cut in to desired lengths instantly and installed.

Applications:

  • Cold or Warm air installations of various kinds.
  • Removing fumes from factories, fuel tanks and underground installations.
  • Dust collection from various machines.
  • Discharge of welding gas at the welding job site.
  • Air cleaner hose for vehicles and heavy equipments.
  • For dung cart.
  • Conveying of granules or fine particles of raw material in processing industries
  • In domestic vacuum cleaning equipments.
  • In washing machines.
  • For carding machines and draw forms in Textile Industry.
  • Transportation of wheat and other cereals in the course of processing.

Specifications

Inches. mm ID mm OD mm Bending Redius mm Standard Lengths (mtrs.)
5/8 16 16.0 22.00 22 30
3/4 22 21.0 28.60 35 30
1 25 25.4 32.10 45 30
11/4 30 31.8 38.60 50 30
11/2 40 38.0 45.00 55 30
2 50 50.8 57.20 65 30
21/2 65 63.5 71.50 75 30
3 75 76.2 83.50 95 30
4 100 101.2 108.90 125 30
5 125 127.0 135.20 140 15
6 150 152.4 161.10 205 15
8 200 204.0 214.40 270 15
10 250 254.0 265.00 370 10
12 300 305.0 320.00 370 10
60mm, 80mm, 90mm, 110mm, 140mm,160mm, 225mm sizes are also available on request

CONSTRUCTON & APPLICATIONS : Our Non-Toxic hose is made of special Non-Toxic PVC Compound which is safely recommended for conveying food products, beverages, arreated drinks, powdered cereals and their by products etc

Advantages:

  • The inside surface of our hose is smooth and it will make cleaning of hose very easy after every use.
  • As the hose is clear transparent, you can make sure that there is no left over particle of dirt on the inside wall after cleaning.
  • Visible flow. Good resistance to oil and other chemicals.
  • Light in weight.
  • Tough enough to resist distortion under impact and crush loads during service.
  • Resistance to absolute vacuum assures ideal suitability for suction and delivery application.

Specifications

Nominal Size Diameter Bending Redius mm Pressure ( at 30° c ) Standard Lengths (mtrs.)
Inches. mm ID mm OD mm Working Pressure (kg/CM2) Bursting kg/CM2
1 25 25.4* 30.0* 55 7.0 20.0 30
11/4 30 31.8* 36.8* 75 6.5 20.0 30
11/2 40 38.0* 43.3** 95 5.0 16.0 30
2 50 50.8* 57.8*** 122 4.0 16.0 30
21/2 65 63.5* 72.0*** 160 4.0 16.0 30
3 75 76.2** 85.0*** 272 3.5 15.0 30
4 100 101.2* 112.2**** 290 3.5 11.0 30
Recommended maximum working temperature : 60/70°C
Variation in ID/OD : {* = + 0.5} {** = + 1.0} {*** = + 1.5} {**** = ± 2.0}
