We offer a wide range of hydraulic hoses that is manufactured using quality synthetic rubber and raw material. These find their application in various industries. These hydraulic hoses are widely used in high pressure fuel lines, fuel oil, antifreeze solutions and air and water. Due to good quality and maintaining smooth pressure, these are appreciated by our customers. We also offer our range in customized sizes and length as per the customers’ specifications.We offer a wide range of hydraulic hoses that is manufactured using quality synthetic rubber and raw material. These find their application in various industries. These hydraulic hoses are widely used in high pressure fuel lines, fuel oil, antifreeze solutions and air and water. Due to good quality and maintaining smooth pressure, these are appreciated by our customers. We also offer our range in customized sizes and length as per the customers’ specifications.
Recommended For: Medium pressure hydraulic lines. Meets or exceeds the requirements SAE 100 R1 type AT and DIN EN853 ISN.
Construction: Synthetic oil Resistant rubber tube , one high tensile steel wire braid reinforcement nd weather &oil resistant synthetic rubber cover.
Temp. Range: - 40 c to +100 c (+120 c intermittent )
| Reference No. | Hose I.D | Hose O.D | Maximum Working Pressure | Minimum Burst Pressure | Minimum Bend Radius | |||||
| 1AT-IM-4 | 6.4 | 1/4 | 13.5 | 0.53 | 225 | 3263 | 900 | 13050 | 100 | 3.9 |
| 1AT-IM-5 | 7.9 | 5/16 | 15.0 | 0.59 | 215 | 3118 | 860 | 12470 | 115 | 4.5 |
| 1AT-IM-6 | 9.5 | 3/8 | 17.5 | 0.69 | 180 | 2610 | 720 | 10440 | 127 | 5.0 |
| 1AT-IM-8 | 12.7 | 1/2 | 20.6 | 0.81 | 160 | 2320 | 640 | 9280 | 178 | 7.0 |
| 1AT-IM-10 | 15.9 | 5/8 | 23.7 | 0.93 | 130 | 1885 | 520 | 7540 | 200 | 7.9 |
| 1AT-IM-12 | 19.1 | 3/4 | 27.7 | 1.09 | 105 | 1523 | 420 | 6090 | 241 | 9.5 |
| 1AT-IM-16 | 25.4 | 1 | 35.6 | 1.40 | 88 | 1276 | 352 | 5104 | 300 | 11.8 |
| 1AT-IM-20 | 31.8 | 1 1/4 | 43.5 | 1.71 | 63 | 914 | 252 | 3654 | 420 | 16.5 |
| 1AT-IM-24 | 38.1 | 1 1/2 | 50.6 | 1.99 | 50 | 725 | 200 | 2900 | 500 | 19.7 |
| 1AT-IM-32 | 50.8 | 2 | 64.0 | 2.52 | 40 | 580 | 160 | 2320 | 635 | 25.0 |
Recommended For: High pressure hydraulic lines .Meets or exceeds the requirements SAE 100 R2 type AT and DIN EN853 2SN
Construction: Synthetic oil Resistant rubber tube , two high tensile steel wire braid reinforcement and weather &oil resistant synthetic rubber cover.
Temp. Range: - 40 c to +100 c (+120 c intermittent )
| Reference No. | Hose I.D | Hose O.D | Maximum Working Pressure | Minimum Burst Pressure | Minimum Bend Radius | |||||
| 2AT-IM-4 | 6.4 | 1/4 | 15.0 | 0.59 | 400 | 5800 | 1600 | 23200 | 100 | 3.9 |
| 2AT-IM-5 | 7.9 | 5/16 | 16.6 | 0.65 | 350 | 5075 | 1400 | 20300 | 115 | 4.5 |
| 2AT-IM-6 | 9.5 | 3/8 | 19.0 | 0.75 | 330 | 4785 | 1320 | 19140 | 127 | 5.0 |
| 2AT-IM-8 | 12.7 | 1/2 | 22.2 | 0.87 | 275 | 3988 | 1100 | 15950 | 178 | 7.0 |
| 2AT-IM-10 | 15.9 | 5/8 | 25.4 | 1.00 | 250 | 3625 | 1000 | 14500 | 200 | 7.9 |
| 2AT-IM-12 | 19.1 | 3/4 | 29.3 | 1.15 | 215 | 3118 | 860 | 12470 | 241 | 9.5 |
| 2AT-IM-16 | 25.4 | 1 | 38.1 | 1.50 | 165 | 2393 | 660 | 9570 | 300 | 11.8 |
| 2AT-IM-20 | 31.8 | 1 1/4 | 48.3 | 1.90 | 125 | 1813 | 500 | 7250 | 420 | 16.5 |
| 2AT-IM-24 | 38.1 | 1 1/2 | 54.6 | 2.15 | 90 | 1305 | 360 | 5220 | 500 | 19.7 |
| 2AT-IM-32 | 50.8 | 2 | 67.3 | 2.65 | 80 | 1160 | 320 | 4640 | 635 | 25.0 |

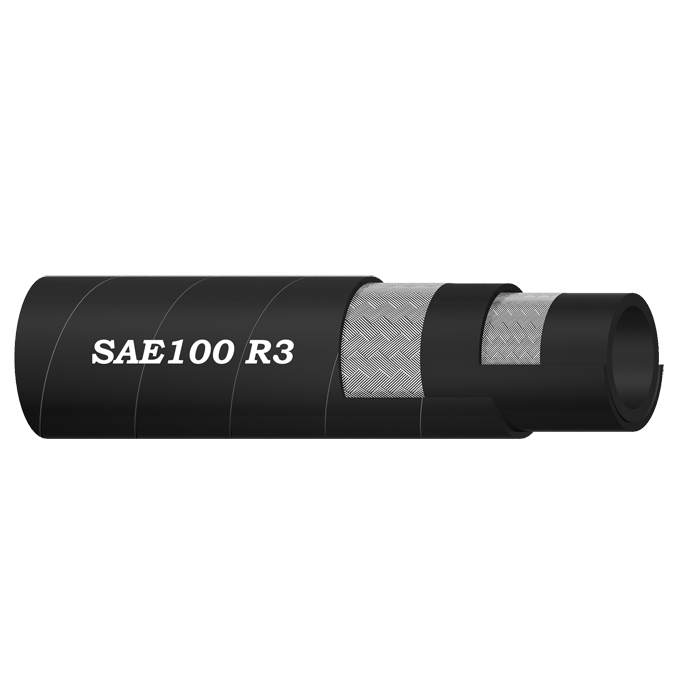

Recommended For:
Medium pressure hydraulic oil lines .Meets or exceeds the requirements SAE 100 R3 type A and DIN EN854Construction: Synthetic oil Resistant rubber tube , two Textile braid reinforcement and weather &oil resistant synthetic rubber cover.
Temp. Range: - 40 c to +100 c
| Reference No. | Hose I.D | Hose O.D | Maximum Working Pressure | Minimum Burst Pressure | Minimum Bend Radius | |||||
| mm | Inch | mm | Inch | Bar | Psi | Bar | Psi | mm | Inch | |
| 3-IM-3 | 4.8 | 3/16 | 12.7 | 0.50 | 105 | 1523 | 420 | 6090 | 76 | 3.0 |
| 3-IM-4 | 6.4 | 1/4 | 14.3 | 0.56 | 87 | 1250 | 348 | 5046 | 76 | 3.0 |
| 3-IM-5 | 7.9 | 5/16 | 17.5 | 0.69 | 84 | 1218 | 336 | 472 | 101 | 4.0 |
| 3-IM-6 | 9.5 | 3/8 | 19.1 | 0.7165 | 78 | 1131 | 312 | 4524 | 101 | 4.0 |
| 3-IM-8 | 12.7 | 1/2 | 23.8 | 0.94 | 70 | 1015 | 280 | 4060 | 127 | 5.0 |
| 3-IM-10 | 15.9 | 5/8 | 27.0 | 1.06 | 61 | 885 | 244 | 3538 | 140 | 5.5 |
| 3-IM-12 | 19.1 | 3/4 | 31.8 | 1.25 | 52 | 754 | 208 | 3016 | 152 | 6.0 |
| 3-IM-16 | 25.4 | 1 | 38.1 | 1.50 | 39 | 566 | 156 | 2250 | 203 | 8.0 |
| 3-IM-20 | 31.8 | 1 1/4 | 44.5 | 1.75 | 26 | 377 | 104 | 1500 | 254 | 10.0 |
| 3-IM-24 | 38.1 | 1 1/2 | 50.8 | 2.00 | 17 | 247 | 68 | 986 | 205 | 12.0 |
| 3-IM-32 | 50.8 | 2 | 64.0 | 2.52 | 15 | 218 | 60 | 870 | 409 | 16.1 |
Recommended For: low pressure hydraulic oil lines .Meets or exceeds the requirements SAE 100 R6 type A and DIN EN854
Construction: Synthetic oil Resistant rubber tube , one Textile braid reinforcement and weather &oil resistant synthetic rubber cover
Temp. Range: - 40 c to +100 c
| Reference No. | Hose I.D | Hose O.D | Maximum Working Pressure | Minimum Burst Pressure | Minimum Bend Radius | |||||
| mm | Inch | mm | Inch | Bar | Psi | Bar | Psi | mm | Inch | |
| 6-IM-3 | 4.8 | 3/16 | 11.1 | 0.44 | 35 | 508 | 140 | 2030 | 51 | 2.0 |
| 6-IM-4 | 6.4 | 1/4 | 12.7 | 0.50 | 28 | 406 | 112 | 1624 | 64 | 2.5 |
| 6-IM-5 | 7.9 | 5/16 | 14.3 | 0.56 | 28 | 406 | 112 | 1624 | 76 | 3.0 |
| 6-IM-6 | 9.5 | 3/8 | 16.0 | 0.63 | 28 | 406 | 112 | 1624 | 76 | 3.0 |
| 6-IM-8 | 12.7 | 1/2 | 19.8 | 0.78 | 28 | 406 | 112 | 1624 | 101 | 4.0 |
| 6-IM-10 | 15.9 | 5/8 | 23.1 | 1.91 | 24 | 348 | 96 | 1392 | 127 | 5.0 |
| 6-IM-12 | 19.1 | 3/4 | 26.6 | 1.05 | 21 | 305 | 84 | 1218 | 152 | 6.0 |
| 6-IM-16 | 25.4 | 1 | 32.5 | 1.28 | 15 | 210 | 60 | 870 | 178 | 7.0 |
Recommended For: medium pressure hydraulic oil lines .Meets or exceeds the requirements SAE 100 R5 .
Construction:Synthetic oil Resistant rubber tube , one braid of high tensile steel wire over one braid of textile reinforcement and an oil &mildew resistant rubber impregnated textile cover.
Temp. Range:- 40 c to +100 c
| Reference No. | Hose I.D | Hose O.D | Maximum Working Pressure | Minimum Burst Pressure | Minimum Bend Radius | ||||||
| mm | Inch | mm | Inch | Bar | Psi | Bar | Psi | mm | Inch | ||
| 5-IM-4 | 4.8 | 3/16 | 13.2 | 0.52 | 210 | 3045 | 840 | 12180 | 76 | 3.0 | |
| 5-IM-5 | 6.4 | 1/4 | 14.8 | 0.58 | 210 | 3045 | 840 | 12180 | 86 | 3.4 | |
| 5-IM-6 | 7.9 | 5/16 | 17.2 | 0.68 | 157 | 2277 | 628 | 9106 | 101 | 4.0 | |
| 5-IM-8 | 10.3 | 13/32 | 19.5 | 0.77 | 140 | 2030 | 560 | 8120 | 117 | 4.6 | |
| 5-IM-10 | 12.7 | 1/2 | 23.4 | 0.92 | 122 | 1769 | 488 | 7076 | 140 | 5.5 | |
| 5-IM-12 | 15.9 | 5/8 | 27.4 | 1.08 | 105 | 1522 | 420 | 6090 | 165 | 6.6 | |
| 5-IM-16 | 22.2 | 7/8 | 31.4 | 1.24 | 56 | 812 | 224 | 3248 | 188 | 7.4 | |
| 5-IM-20 | 28.6 | 1.1/8 | 38.1 | 1.50 | 43 | 624 | 172 | 2494 | 229 | 9.0 | |
| 5-IM-24 | 34.9 | 1.3/8 | 44.5 | 1.75 | 35 | 508 | 140 | 2030 | 267 | 10.5 | |
| 5-IM-32 | 46.0 | 1.13/16 | 58.9 | 2.32 | 24 | 348 | 96 | 1392 | 338 | 13.3 | |
Recommended For: mediun pressure hydraulic oil lines ,meets or exceeds requirements of SAE 100 R5
Construction: Synthetic oil Resistant rubber tube , one braid of high tensile steel wire over one braid of textile reinforcement and weather &oil resistant synthetic rubber cover ,
Temp. Range: - 40 c to +100 c
| Reference No. | Hose I.D | Hose O.D | Maximum Working Pressure | Minimum Burst Pressure | Minimum Bend Radius | |||||
| mm | Inch | mm | Inch | Bar | Psi | Bar | Psi | mm | Inch | |
| 5R-IM-4 | 4.8 | 3/16 | 13.2 | 0.52 | 210 | 3045 | 840 | 12180 | 76 | 3.0 |
| 5R-IM-5 | 6.4 | 1/4 | 14.8 | 0.58 | 210 | 3045 | 840 | 12180 | 86 | 3.4 |
| 5R-IM-6 | 7.9 | 5/16 | 17.2 | 0.68 | 157 | 2277 | 628 | 9106 | 101 | 4.0 |
| 5R-IM-8 | 10.3 | 13/32 | 19.5 | 0.77 | 140 | 2030 | 560 | 8120 | 117 | 4.6 |
| 5R-IM-10 | 12.7 | 1/2 | 23.4 | 0.92 | 122 | 1769 | 488 | 7076 | 140 | 5.5 |
| 5R-IM-12 | 15.9 | 5/8 | 27.4 | 1.08 | 105 | 1522 | 420 | 6090 | 165 | 6.5 |
| 5R-IM-16 | 22.2 | 7/8 | 31.4 | 1.24 | 56 | 812 | 224 | 3248 | 188 | 7.4 |
| 5R-IM-20 | 28.6 | 1.1/1/8 | 38.1 | 1.50 | 43 | 624 | 172 | 2494 | 229 | 9.0 |
| 5R-IM-24 | 34.9 | 10.3/8 | 44.5 | 1.75 | 35 | 508 | 140 | 2030 | 267 | 10.5 |
| 5R-IM-32 | 46.0 | 1.13/16 | 58.9 | 2.32 | 24 | 348 | 96 | 1392 | 338 | 13.3 |
Recommended For: low pressure petroleun and water based hydraukic fluids in suction lines or return lines. meets or exceeds the requirements of SAE 100 R4
Construction:Synthetic oil Resistant rubber tube , two braids of textile reinforced with a helical spherical wire to prevent collapse and weather &oil resistant synthetic rubber cover.
Temp. Range:- 40 c to +100 c
| Reference No. | Hose I.D | Hose O.D | Maximum Working Pressure | Minimum Burst Pressure | Minimum Bend Radius | |||||
| mm | Inch | mm | Inch | Bar | Psi | Bar | Psi | mm | Inch | |
| 4-IM-12 | 19.1 | 3/4 | 35.0 | 1.38 | 21 | 305 | 84 | 1218 | 127 | 5.0 |
| 4-IM-16 | 25.4 | 1 | 41.4 | 1.63 | 17 | 247 | 68 | 986 | 152 | 6.0 |
| 4-IM-20 | 31.8 | 1.1/4 | 50.8 | 2.00 | 14 | 203 | 56 | 812 | 203 | 8.0 |
| 4-IM-24 | 38.1 | 1.1/2 | 57.1 | 2.25 | 11 | 160 | 42 | 609 | 254 | 10.0 |
| 4-IM-32 | 50.8 | 2 | 69.8 | 2.75 | 7 | 102 | 28 | 406 | 305 | 12.0 |
Recommended For: specially designed for hydraulic systems subjected to high surge peaks& severe operating conditions ,meets or exceeds the requirements of SAE 100 R2 and DINEN 853
Construction:Synthetic oil Resistant rubber tube , twohigh tensile steel wire braids reinforcement and weather and oil resistant synthetic rubber cover.
Temp. Range:- 40 c to +100 c
| Reference No. | Hose I.D | Hose O.D | Maximum Working Pressure | Minimum Burst Pressure | Minimum Bend Radius | |||||
| mm | Inch | mm | Inch | Bar | Psi | Bar | Psi | mm | Inch | |
| HP2-IM-6 | 9.5 | 3/8 | 22.2 | 0.87 | 350 | 5075 | 1400 | 20300 | 127 | 5.0 |
| HP2-IM-8 | 12.7 | 1/2 | 25.4 | 1.00 | 345 | 5003 | 1380 | 20010 | 178 | 7.0 |
| HP2-IM-10 | 15.9 | 5/8 | 28.7 | 1.13 | 300 | 4350 | 1200 | 17400 | 203 | 8.0 |
| HP2-IM-12 | 19.1 | 3/4 | 32.2 | 1.27 | 265 | 3843 | 1060 | 15370 | 241 | 9.5 |
| HP2-1M-16 | 25.4 | 1 | 40.9 | 1.61 | 210 | 3045 | 840 | 12180 | 305 | 12.0 |
Recommended For: An extra high pressure hose which is an alternative to multi spiral hydraulic hose where a relatively flexible and high pressure hose is required
Construction:Synthetic oil Resistant rubber tube , three high tensile steel wire braids reinforcement and synthetic rubber cover which provides working pressure greater than an equivalent diameter of SAE 100 R9,R 12 or 4SP DIN specification.
Temp. Range:- 40 c to +100 c
| Reference No. | Hose I.D | Hose O.D | Maximum Working Pressure | Minimum Burst Pressure | Minimum Bend Radius | |||||
| mm | Inch | mm | Inch | Bar | Psi | Bar | Psi | mm | Inch | |
| 333-IM-8 | 12.7 | 1/2 | 25.2 | 0.99 | 470 | 3815 | 1880 | 27260 | 160 | 6.3 |
| 333-IM-10 | 15.9 | 5/8 | 27.7 | 1.09 | 400 | 5800 | 1600 | 23200 | 216 | 8.5 |
| 333-IM-12 | 19.1 | 3/4 | 32.5 | 1.28 | 355 | 5148 | 1420 | 20590 | 162 | 10.3 |
| 333-IM-16 | 25.4 | 1 | 40.6 | 1.60 | 310 | 4495 | 1240 | 17980 | 318 | 12.5 |
| 333-IM-20 | 31.8 | 1.1/4 | 46.5 | 1.83 | 240 | 3480 | 970 | 14065 | 409 | 16.1 |
Steam Hoses
Recommended For: Designed for use in industry to transfer steam at high temperature. Meets or exceeds requirements of IS10655, type2.
Construction:Steam and Heat resistant rubber inner tube, one high tensil wire braid reinforcement and heat resistant outer cover.
Temp. Range: Upto 184C
| Reference No. | Hose I.D | Hose O.D | Maximum Steam Working Pressure | Minimum Hydraulic Burst Pressure | ||||
| mm | Inch | mm | Inch | Bar | Psi | Bar | Psi | |
| 10655(2)-IM-6 | 9.5 | 3/8 | 21.2 | 0.84 | 10 | 145 | 100 | 1450 |
| 10655(2)-IM-8 | 12.7 | 1/2 | 24.1 | 0.95 | 10 | 145 | 100 | 1450 |
| 10655(2)-IM-10 | 15.9 | 5/8 | 27.2 | 1.07 | 10 | 145 | 100 | 1450 |
| 10655(2)-IM-12 | 19.1 | 3/4 | 30.4 | 1.20 | 10 | 145 | 100 | 1450 |
| 10655(2)-IM-16 | 25.4 | 1 | 37.3 | 1.47 | 10 | 145 | 100 | 1450 |
| 10655(2)-IM-20 | 31.8 | 1.1/4 | 43.6 | 1.72 | 10 | 145 | 100 | 1450 |
| 10655(2)-IM-24 | 38.1 | 1.1/2 | 50.5 | 1.99 | 10 | 145 | 100 | 1450 |
| 10655(2)-IM-32 | 50.8 | 2 | 63.2 | 2.49 | 10 | 145 | 100 | 1450 |
Fuel Dispensing Hoses
Recommended For: Designed for use in petroleum based fuel dispensing. Meets or exceeds the requirements of IS 2396.
Construction:Synthetic rubber inner tube resistant to petrol and diesel fuels, two textile braids reinforcement with electrically bonded copper wire and weather & petroleum based fuels resistant synthetic rubber cover.
Temp. Range: -40C to +55C
| Reference No. | Hose I.D | Hose O.D | Maximum Working Pressure | Minimum Burst Pressure | Minimum Bend Radius |
|||||
| mm | Inch | mm | Inch | Bar | Psi | Bar | Psi | mm | inch | |
| 2396-IM-12 | 19.1 | 3/4 | 32.0 | 1.26 | 8 | 116 | 30 | 435 | 152 | 6.0 |
| 2396-IM-16 | 25.4 | 1 | 38.1 | 1.50 | 8 | 116 | 30 | 435 | 203 | 8.0 |
Recommended For: Designed for use in petroleum based fuel dispensing. Meets or exceeds the requirements of EN 1360.
Construction:Synthetic rubber inner tube resistant to petrol and diesel fuels, two textile braids reinforcement with electrically bonded copper wire and weather & petroleum based fuels resistant synthetic rubber cover.
Temp. Range:- 40 c to +55 c
| Reference No. | Hose I.D | Hose O.D | Maximum Working Pressure | Minimum Burst Pressure | Minimum Bend Radius |
|||||
| mm | Inch | mm | Inch | Bar | Psi | Bar | Psi | mm | inch | |
| 1360-IM-12 | 19.1 | 3/4 | 29.5 | 1.16 | 16 | 232 | 48 | 696 | 152 | 6.0 |
| 1360-IM-16 | 25.4 | 1 | 36.0 | 1.42 | 16 | 232 | 48 | 696 | 203 | 8.0 |
Recommended For: Designed for use in hydraulic jack application used in jacking systems.
Construction:Synthetic oil resistant rubber tube, two high tensile steel wire braids reinforcement and weather & ozone resistant synthetic rubber cover.
Temp. Range:- 40 c to +50 c
| Reference No. | Hose I.D | Hose O.D | Maximum Working Pressure | Minimum Burst Pressure | Minimum Bend Radius |
|||||
| mm | Inch | mm | Inch | Bar | Psi | Bar | Psi | mm | inch | |
| JACK-IM-4 | 6.4 | 1/4 | 14.8 | 0.58 | 690 | 10005 | 1380 | 20010 | 102 | 4.0 |
| JACK-IM-6 | 9.5 | 3/8 | 18.8 | 0.74 | 690 | 10005 | 1380 | 20010 | 127 | 5.0 |
